The DJI Ronin-M (Model: Ronin-M) is a professional 3-axis handheld gimbal stabilizer engineered for filmmakers, videographers, and content creators seeking cinematic camera motion with precise stabilization. Designed by DJI—an industry leader in aerial imaging and stabilization technology—the Ronin-M brings high-end stabilization performance to a compact, portable platform. Its robust build and advanced tuning capabilities enable smooth, shake-free footage even in challenging shooting environments.
A critical aspect of the Ronin-M’s legitimacy and market availability in the United States is its FCC certification, identified by FCC ID SS3-RMTX11510. While the grant date is listed as “None,” the device is registered with the FCC, confirming that it complies with stringent RF emission standards and electromagnetic interference regulations. This certification ensures the Ronin-M is legal for sale and operation within the U.S., and assures users that its wireless components are both safe and reliable.
In this article, we’ll provide an expert-level breakdown of the Ronin-M’s key features and technical specifications, dissect its wireless capabilities and internal component design, and offer insights drawn directly from its FCC filing. Whether you’re considering the Ronin-M for your workflow or are simply fascinated by the engineering behind professional stabilization systems, this analysis delivers a comprehensive look at what sets this device apart.
Key Features & Specifications
The DJI Ronin-M stands out for its blend of advanced stabilization, user customization, and robust wireless integration. Below, we detail its standout features and technical specifications, explaining their practical benefits for real-world operation.
Key Features
- Calibrate Center & Calibrate System Functions
-
Precisely align the gimbal’s center and system axes for optimal balance, ensuring consistent stabilization and reducing drift during operation.
-
Deadband, Maximum Speed, & Smoothing Adjustments
-
Fine-tune control input response to match different shooting styles—tighten for responsive action, or smooth out for cinematic slow moves.
-
Supports Third-Party Transmitters/Receivers (e.g., D-Bus, Lightbridge)
-
Seamlessly integrates with external control systems, allowing remote operation and compatibility with advanced wireless setups.
-
Motor Kill Switch
-
Instantly disables all motors for safety during transport, setup, or emergencies—protecting both user and equipment.
-
GCU Input Power Connections
-
Flexible power input supports a range of accessories and external modules, broadening the Ronin-M’s integration potential.
-
Auto Tune Stability
-
Automated tuning process quickly optimizes motor parameters for different camera payloads, reducing setup time and maximizing performance.
-
Silent Mode
- Lowers motor noise to near-inaudible levels—ideal for environments where audio capture is critical (e.g., interviews, narrative film sets).
Technical Specifications
-
Load Weight Capacity (Reference Value):
3.6 kg (8 lb)
Enables support for a wide range of camera/lens combinations—from DSLRs to compact cinema cameras. -
Controlled Rotation Range:
- Pan Axis: 360° continuous
Allows for limitless panning shots and creative camera moves. - Roll Axis: ± 110°
Accommodates dramatic roll effects and maintains horizon stability. -
Tilt Axis: -105° to +165°
Wide tilt range supports low-angle and high-angle shots. -
Angular Vibration Range: ± 0.02°
Delivers ultra-smooth footage, even during fast movements or challenging conditions. -
Wireless Connectivity:
- Bluetooth: Present (specific details not disclosed)
Enables wireless tuning and control via the DJI Assistant App, streamlining configuration and real-time adjustments.
Additional Notes
-
Modular Design:
The Ronin-M’s modularity allows for quick transitions between different operation modes (e.g., upright, underslung, briefcase), maximizing versatility on set. -
User Interface:
Intuitive physical controls and app-based configuration make advanced tuning accessible to both professionals and serious enthusiasts. -
Professional Build Quality:
High-quality materials and precision manufacturing ensure reliability, durability, and consistent performance—hallmarks of DJI’s engineering ethos.
Operating Frequencies
The DJI Ronin-M (FCC ID SS3-RMTX11510) operates on the following wireless frequency bands, as specified in its FCC filing:
| Frequency Range (GHz) | Output Power (mW) | FCC Rule Part |
|---|---|---|
| 12.415–2.473 | 10.4 | 15C2.1 |
These frequencies are critical for wireless communication between the Ronin-M and external devices, such as remote controllers, smartphones, or third-party transmitters. The modest output power (10.4 mW) ensures compliance with FCC Part 15 rules for unlicensed low-power devices, minimizing the risk of interference with other wireless equipment while providing adequate range for professional workflows. The frequency band encompasses common wireless standards such as Bluetooth and potentially Wi-Fi, supporting robust connectivity for configuration, control, and integration with other systems.
Technology Deep Dive
The Ronin-M’s wireless architecture centers on Bluetooth connectivity, enabling seamless communication with the DJI Assistant App for both iOS and Android devices. This wireless link allows users to configure parameters, initiate Auto Tune Stability, and monitor gimbal status in real time—eliminating the need for physical connections during setup or on-location adjustments.
Operating within the 2.4 GHz ISM band, the Ronin-M leverages frequencies widely used by Bluetooth and Wi-Fi technologies. This choice ensures broad compatibility and low-latency response, essential for real-time control and tuning. The relatively low output power (10.4 mW) balances energy efficiency with sufficient range for on-set use, reducing battery drain while minimizing the risk of interference with other equipment.
The absence of cellular connectivity or high-power RF transmission aligns with the Ronin-M’s focus on short-range, high-reliability communication. The FCC test reports confirm that the device meets strict RF exposure and electromagnetic compatibility standards, ensuring safe operation in environments dense with wireless devices. Overall, the Ronin-M’s wireless design reflects DJI’s commitment to robust, user-friendly connectivity without compromising regulatory compliance or operational safety.
In-Depth Internal Component Analysis / Teardown
Expert Analysis of Internal Hardware
A close examination of the Ronin-M’s internal electronics offers valuable insights into DJI’s engineering approach, manufacturing quality, and the sophistication of its stabilization platform. Below, we analyze two critical PCB sections, each revealing unique aspects of the device’s design.
Section Highlight: User Interface & Debug PCB
This densely populated PCB section showcases DJI’s focus on both user interaction and serviceability. A compact integrated circuit, likely serving as a sensor or logic controller, is strategically positioned near passive components and a slide switch—suggesting this area manages signal processing or mode selection. The board’s black finish and high via density reflect a premium, multi-layer construction optimized for signal integrity and robust grounding. Multiple white-capped tactile switches or test points are present, indicating provisions for calibration, reset, or manufacturing diagnostics. The absence of large power components or antennas confirms this is not the main power or RF module; instead, it’s engineered for interface and debugging tasks. Overall, the meticulous layout, modularity, and inclusion of test access points illustrate DJI’s commitment to maintainability, reliability, and high build standards in the Ronin-M.

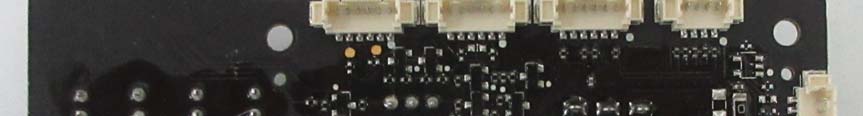

Section Highlight: Signal Distribution & Modular Interfacing
This PCB segment emphasizes modular connectivity and signal management within the Ronin-M. Multiple white connectors, likely JST types, facilitate connections to other modules—such as motor drivers, sensors, or external controls—underscoring the system’s modularity. The board’s black substrate and dense population of SMD passives and small ICs suggest a multi-layer architecture, with careful separation of analog, digital, and power domains to ensure signal integrity. Numerous ground vias and strategic component placement enhance electromagnetic compatibility, while the absence of large power or RF components points to a focus on signal interfacing and distribution. Clean soldering, well-aligned components, and a thoughtful layout reflect high manufacturing quality. This board likely serves as an interface or distribution hub, highlighting DJI’s engineering focus on reliability, scalability, and streamlined assembly within the Ronin-M platform.
Regulatory Insights & FCC Filing
The FCC ID SS3-RMTX11510 assigned to the DJI Ronin-M is a testament to its compliance with U.S. electromagnetic interference (EMI) and RF emission standards. This designation, though lacking a specific grant date, is registered with the FCC, confirming that the device meets the legal requirements for sale and operation within the United States.
FCC filings for devices like the Ronin-M typically include a comprehensive suite of documents: laboratory test reports (covering RF exposure, EMC, and immunity), internal and external photographs, user manuals, schematics, and block diagrams. These documents collectively verify that the device does not exceed permissible emission limits, ensuring it will not interfere with other wireless equipment or pose health risks to users.
Key insights from the user manual (User-Manual-Part-2-2819085.pdf) reveal that the Ronin-M offers detailed operational guidance, including setup, tuning, and ongoing maintenance. The manual covers procedures for using the DJI Assistant App and PC/MAC Assistant, enabling users to fine-tune stabilization, adjust wireless settings, and ensure ongoing compliance with best practices for safe and effective operation. The FCC’s detailed scrutiny and the depth of documentation reinforce the Ronin-M’s status as a professionally engineered, regulatory-compliant stabilization solution.
Potential Use Cases & Target Audience
While the DJI Ronin-M’s documentation does not specify a target audience, its feature set and professional-grade engineering point to several practical use cases and user profiles:
-
Professional Filmmakers and Videographers:
The Ronin-M’s high load capacity, advanced stabilization algorithms, and support for third-party transmitters/receivers make it ideal for commercial shoots, narrative filmmaking, and live event coverage. Its modularity and quick mode transitions allow crews to adapt rapidly to changing production needs. -
Content Creators and Independent Cinematographers:
Solo operators and small teams benefit from the Ronin-M’s intuitive setup, Auto Tune Stability, and wireless configuration via the DJI Assistant App. The ability to fine-tune deadband, speed, and smoothing empowers creators to achieve cinematic motion without a steep learning curve. -
Studios and Rental Houses:
With its robust construction, extensive third-party compatibility, and focus on serviceability, the Ronin-M fits seamlessly into equipment fleets where reliability, rapid turnover, and compatibility with diverse camera systems are paramount.
In each scenario, the Ronin-M’s blend of professional features, wireless flexibility, and regulatory compliance ensures it delivers both creative freedom and operational peace of mind.
Conclusion
The DJI Ronin-M (Model: Ronin-M, FCC ID SS3-RMTX11510) stands as a benchmark in handheld gimbal stabilization—combining advanced engineering, robust wireless integration, and meticulous attention to regulatory compliance. Its FCC certification assures users of both safety and legal operation, while its powerful feature set and high-quality internal design make it a trusted tool for professionals and enthusiasts alike. As content creation demands ever-greater stability and flexibility, the Ronin-M’s blend of performance, reliability, and compliance secures its place as a leader in the field of camera stabilization technology.
