The DJI Lightbridge 2 by SZ DJI TECHNOLOGY CO., LTD. (FCC ID SS3-IG8101508) represents a significant advancement in wireless video transmission technology, crafted specifically for high-definition video streaming and remote drone operation. This device integrates seamlessly with DJI’s ecosystem, allowing drone operators to achieve pristine video feeds and responsive control. Certified by the Federal Communications Commission (FCC) under ID SS3-IG8101508, the Lightbridge 2 complies fully with stringent electromagnetic interference and radiofrequency emission standards, ensuring legality for sale and operation within the United States.
In this comprehensive article, we’ll delve deep into the Lightbridge 2’s technical specifications, analyze its innovative wireless technologies, and explore the internal components through an expert teardown analysis. Whether you’re an engineer, drone enthusiast, or tech-savvy consumer, this detailed exploration will provide valuable insights into DJI’s sophisticated design approach, wireless capabilities, and regulatory compliance.
Key Features & Specifications
The DJI Lightbridge 2 packs an impressive array of features tailored for professional drone operations and high-quality video transmission:
Key Features:
- DJI GO App Compatibility: Seamless integration providing intuitive control and real-time monitoring.
- Dual Ground System Mode (Master and Slave Controllers): Facilitates collaborative drone operations and training scenarios.
- Multiple Video Outputs: Supports HDMI, SDI, and USB outputs for versatile connectivity.
- Built-in GPS Module in Ground System: Enhances positional accuracy and operational reliability.
- Customizable Buttons and Dials: Offers personalized control schemes for enhanced user experience.
- Maximum Transmission Distance: Up to 2 km outdoors (unobstructed), ensuring extensive operational range.
Technical Specifications:
- Supported HDMI/SDI Output Formats: 720p50, 720p60, 1080i50, 1080i60, 1080p50, 1080p60
- Supported AV Input Formats: PAL25, NTSC30
- Supported HDMI Input Formats: 720p50/60, 1080i50/60, 1080p25/30/50/60
- Ground System Battery: 7.4V 6000mAh rechargeable battery
- Ground System Dimensions (without antennas): 182mm (L) x 167mm (W) x 104mm (H)
- Air System Dimensions (without antennas): 68mm (L) x 48mm (W) x 21mm (H)
- Air System Antennas Gain: 2dBi at 2450MHz
- Bluetooth: Integrated (specific details N/A)
Operating Frequencies
| Frequency Range (GHz) | Output Power (mW) | FCC Rule Part |
|---|---|---|
| 2.4065 – 2.4765 | 359 | 15CMO1 |
These frequencies ensure efficient wireless communication, optimizing range and minimizing interference within the widely used 2.4GHz band.
Technology Deep Dive
The DJI Lightbridge 2 leverages advanced wireless technologies operating primarily within the 2.4GHz frequency band. This frequency range, common in Wi-Fi and Bluetooth technologies, balances optimal range with minimal interference. The device’s output power of 359mW is carefully calibrated to maximize transmission range (up to 2km unobstructed) without compromising battery efficiency or causing excessive interference with nearby wireless devices.
Given the robust power output and frequency band, users can expect reliable, high-definition video transmission with minimal latency. However, operating within the crowded 2.4GHz spectrum necessitates careful positioning of antennas and awareness of potential interference sources, such as Wi-Fi routers or Bluetooth devices, to maintain optimal performance.
In-Depth Internal Component Analysis / Teardown

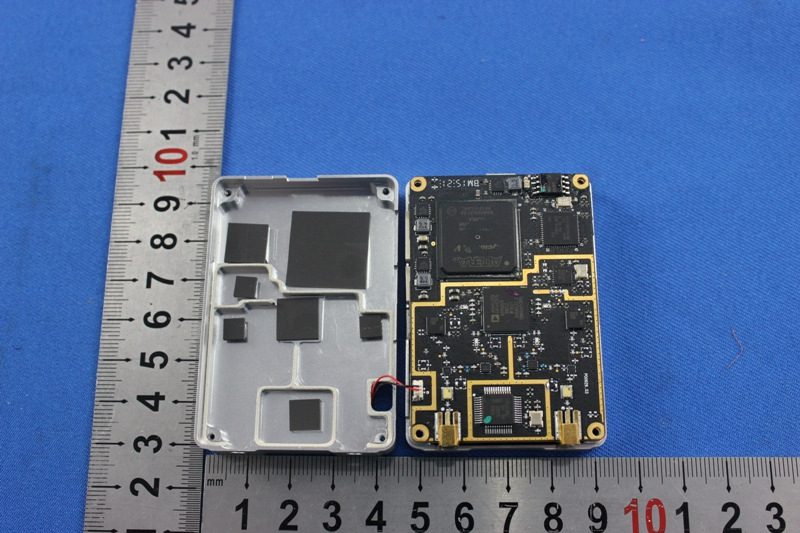

The internal PCB exhibits a densely populated multi-layer design, prominently featuring an Altera FPGA, indicative of advanced processing capabilities. High-quality black PCB material and differential pair routing suggest optimized RF performance and high-speed data handling. Two U.FL connectors facilitate external antennas, underscoring the device’s emphasis on robust RF communication. Thermal pads and EMI shielding illustrate meticulous attention to thermal management and interference mitigation, critical for reliable drone operation and high-definition streaming.

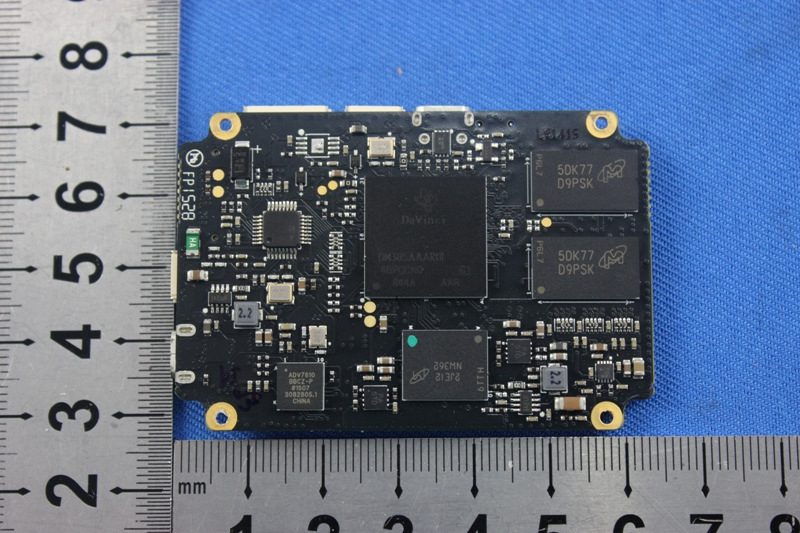

Central to the video processing capabilities is a Texas Instruments DaVinci digital media processor, accompanied by Micron DDR memory chips for volatile storage. An Analog Devices ADV7510 HDMI transmitter further enhances video output quality. The board’s intricate routing, numerous test points, and onboard power regulation speak to DJI’s commitment to high signal integrity and efficient power management, essential for maintaining stable, high-definition video streams over considerable distances.

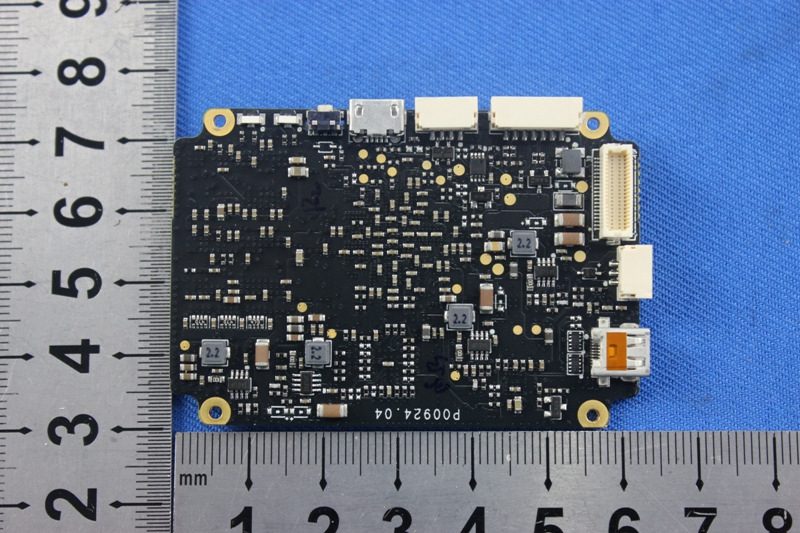

This PCB features multiple microcontrollers and RF transceivers, though specific IC markings are obscured. The presence of a micro USB connector, multiple FPC connectors, and a robust board-to-board connector arrangement indicate modularity and ease of integration. Power regulation components and extensive grounding vias reinforce the device’s reliability, especially under demanding operational conditions encountered during drone flights and extended streaming sessions.

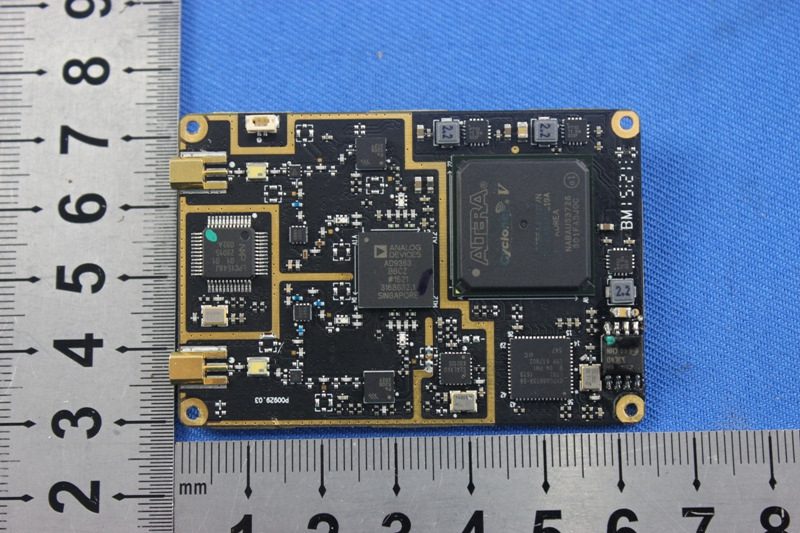

An Altera Cyclone IV FPGA and Analog Devices AD9361 RF transceiver dominate this board, suggesting advanced real-time data handling and sophisticated wireless communication capabilities. Gold-plated pads and controlled impedance traces affirm DJI’s meticulous approach to PCB design, ensuring high performance and minimal signal degradation. Multiple connectors emphasize modularity, allowing seamless integration with external antennas and additional processing modules.
This PCB includes a prominent microcontroller or FPGA, U.FL antenna connectors, and a large FPC connector, implying advanced processing tasks and external antenna connectivity. The presence of numerous capacitors, inductors, and test points highlights thorough power regulation and debugging capabilities, ensuring stable operation and ease of maintenance. The sophisticated layout and robust design reinforce the Lightbridge 2’s suitability for professional-grade drone communication.
Regulatory Insights & FCC Filing
The FCC ID SS3-IG8101508 certifies that the DJI Lightbridge 2 meets stringent U.S. electromagnetic interference and RF emission standards, ensuring its legality for sale and operation. FCC filings typically include comprehensive test reports on RF exposure, electromagnetic compatibility (EMC), detailed internal and external photographs, user manuals, schematics, and block diagrams. According to the device’s user manual, it supports a 2.4GHz frequency band, dual ground system modes, and DJI GO app integration, highlighting compliance and functionality tailored for professional drone operators.
Potential Use Cases & Target Audience
The DJI Lightbridge 2 is ideally suited for:
- Professional Drone Pilots: Ensuring crystal-clear, low-latency video feeds for precision aerial filming, surveillance, or inspection tasks.
- Broadcasting and Media Teams: Leveraging dual ground system modes for collaborative control during live event coverage, enabling simultaneous camera operation and drone piloting.
- Training and Education: Utilizing master-slave configurations to facilitate hands-on drone flight instruction, providing trainees with immersive, real-time visual feedback.
Conclusion
The DJI Lightbridge 2 (FCC ID SS3-IG8101508) exemplifies advanced wireless video transmission technology, designed meticulously for professional drone operations. Its FCC certification underscores compliance and reliability, while internal teardowns reveal sophisticated hardware optimized for high-performance communication. With robust build quality, extensive features, and regulatory compliance, the Lightbridge 2 remains a pivotal tool for drone enthusiasts and professional operators alike, setting a high standard in drone communication technology.
