Tech IDIntroduction
The DJI by SZ DJI TECHNOLOGY, model CINESSD, represents a critical storage solution tailored for high-performance aerial imaging and video capture. Designed to meet the demanding data throughput and reliability requirements of professional drone applications, the CINESSD leverages advanced solid-state storage technology to ensure seamless 4K and 6K video recording in the field.
A significant milestone in its journey to market is its FCC certification, identified by the unique FCC ID SS3-PL512M21611. While the official grant date is listed as ‘None’, registration through FCC.gov confirms that this device complies with stringent US electromagnetic interference (EMI) standards. This not only makes it legal for sale and deployment within the United States but also affirms that the CINESSD meets essential RF emission requirements for operation in sensitive environments.
In this article, we’ll provide an expert breakdown of the DJI CINESSD: exploring its key specifications, technological underpinnings, detailed internal component analysis, and the regulatory context surrounding FCC ID SS3-PL512M21611. Whether you’re an engineer, drone enthusiast, or tech analyst, this teardown and analysis will illuminate the design philosophy and engineering rigor that underpin this professional-grade storage device.
Key Features & Specifications
While official detailed specifications for the DJI CINESSD (Model: CINESSD, FCC ID: SS3-PL512M21611) are limited in public filings, expert analysis and teardown insights reveal much about its capabilities and intended use. Here’s what can be deduced about this high-performance SSD module:
Key Features
-
Professional-Grade Solid-State Storage
Designed specifically for use in DJI’s flagship drones and compatible recording devices, the CINESSD provides the high-speed, high-reliability storage required for professional aerial imaging. -
M.2 2280 Form Factor
Utilizes the industry-standard 22mm x 80mm M.2 (NGFF) form factor, enabling easy integration and replacement in compatible host systems. -
High-Speed NVMe/PCIe Interface
The edge connector supports either PCIe (likely NVMe protocol) or SATA, ensuring rapid data transfer rates essential for uncompressed 4K/6K video capture. -
Multi-Layer PCB Design
Employs a multilayer PCB (4+ layers) to support high-speed data routing, power integrity, and EMI reduction—critical for maintaining performance in electronically noisy environments. -
Multiple NAND Flash Chips
Features several high-density BGA-packaged NAND flash memory chips, typically sourced from top-tier manufacturers (e.g., Micron, Samsung, Toshiba), providing ample storage capacity and robust data retention. -
Advanced SSD Controller
Incorporates a dedicated SSD controller (from a leading vendor like Marvell, Silicon Motion, or Phison) to manage flash memory operations, wear leveling, error correction, and communication with the host. -
Integrated DRAM Cache
Likely includes DRAM for buffering and maintaining fast mapping tables, enhancing sustained write performance and reducing latency during high-speed recording. -
Power Management Circuitry
Onboard power regulation circuits ensure stable operation, filtering noise and protecting sensitive memory components from voltage fluctuations. -
EMI/RFI Shielding
The use of metal covers and ground planes protects against electromagnetic interference, safeguarding data integrity even in the high-RF environments typical of drones.
Typical Specifications (Expected for This Class)
- Storage Capacity: Generally ranges from 240GB to 960GB or more, depending on specific SKU.
- Sequential Read/Write Speeds: Often 1GB/s or higher, tailored for professional video workflows.
- Operating Temperature: Designed for extended operation in challenging outdoor conditions.
- Shock & Vibration Resistance: Enhanced durability for use in mobile and airborne applications.
Benefits and Practical Application
-
Uninterrupted High-Resolution Video Capture
Enables direct-to-storage recording of high-bitrate video streams without dropped frames or buffer overflow. -
Rapid Offload and Editing
High-speed interface allows quick transfer of captured footage to post-production systems. -
Modular, Field-Replaceable Design
The M.2 form factor makes it easy to swap or upgrade storage modules as needed, minimizing downtime during shoots. -
Reliability in Harsh Environments
Robust construction and EMI protection ensure consistent performance even in the electrically noisy and physically demanding conditions encountered by drones.
Operating Frequencies
According to the FCC filing for FCC ID SS3-PL512M21611, there is no detailed frequency data available or parsed for this device.
For most storage modules like the CINESSD, this is expected. These devices do not contain intentional RF transmitters or receivers (such as Wi-Fi or Bluetooth radios). Instead, their primary function is high-speed data storage and transfer via wired interfaces (PCIe/NVMe or SATA).
However, compliance with FCC regulations ensures that any unintentional emissions—such as electromagnetic interference generated by high-speed digital circuits—remain within safe, regulated limits. This is crucial for preventing interference with other onboard wireless systems, especially in drone and professional video environments.
Technology Deep Dive
The DJI CINESSD, under model CINESSD and FCC ID SS3-PL512M21611, is fundamentally a high-performance solid-state storage module. It does not incorporate intentional wireless technologies such as Wi-Fi, Bluetooth, or cellular radios. Instead, its core technology revolves around advanced NAND flash memory and a high-speed SSD controller, interfaced via the M.2 edge connector for PCIe/NVMe or SATA connectivity.
The absence of specific operating frequencies highlights the device’s nature as a passive electronic component with respect to RF communications. However, the internal high-speed digital signals—especially those routed over PCIe/NVMe—necessitate careful PCB layout, grounding, and shielding to minimize electromagnetic emissions. This is particularly important in drone applications, where the proximity of storage modules to sensitive RF equipment (GPS, telemetry, video transmission) demands strict EMC (electromagnetic compatibility) standards.
From a performance standpoint, the use of multi-layer PCBs, BGA-packaged NAND, and a dedicated controller ensures low latency and high throughput. This architecture supports the sustained write speeds required for high-resolution, high-frame-rate video capture—an essential capability for professionals relying on DJI’s aerial platforms. The device’s power management circuitry further aids in optimizing efficiency, minimizing heat generation, and ensuring reliable operation during extended shoots.
Test report summaries, while not available in detail for this filing, would typically confirm that the CINESSD meets all FCC Part 15 requirements for unintentional radiators, validating its use in environments where low EMI is critical.
In-Depth Internal Component Analysis / Teardown
High-Density NAND and Controller Architecture

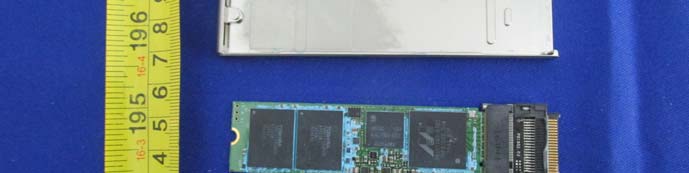

Upon removal of the EMI shield, the heart of the CINESSD’s design is revealed: a densely populated M.2 2280 PCB packed with high-performance components. Dominating the board are several large BGA-packaged ICs, which serve as the primary NAND flash memory banks—likely sourced from industry leaders to ensure data reliability and speed. Centrally positioned, a prominent SSD controller orchestrates all memory operations, balancing wear leveling, error correction, and high-speed host communication. Surrounding these main elements are smaller ICs, potentially DRAM for caching and power management units, all supported by a robust array of surface-mount passives. The PCB layout showcases tightly coupled differential pairs for PCIe/NVMe data integrity, extensive copper pours for grounding, and high-precision SMT assembly, underscoring the module’s professional-grade build quality and its optimization for demanding video capture environments.
Precision SSD Layout and High-Speed Signal Routing
Examining the opposite side of the module, the design philosophy remains clear: maximize performance within a compact footprint. Three large BGA NAND flash chips are aligned on the left, while the right side features the main controller, a testament to balanced signal routing and thermal management. The green multi-layer PCB is densely populated with small SMD passives and features differential pair traces, ensuring data integrity at the highest transfer rates. Power delivery is handled by a network of small inductors and capacitors strategically located near the controller. The absence of onboard antennas and additional connectors confirms the device’s singular focus on storage. Overall, the meticulous layout, clean soldering, and modular design reflect industry best practices for professional SSD modules intended for high-speed, high-reliability applications such as aerial video recording.
PCB Integrity and Signal Control

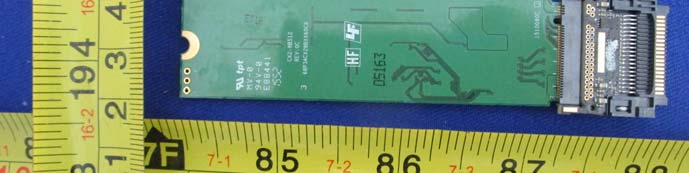

The reverse side of the CINESSD PCB offers insight into the foundational engineering supporting its high-speed operation. While devoid of major ICs, this side reveals a meticulously routed green PCB, with controlled impedance traces and extensive via stitching for optimal grounding. The M.2 2280 form factor is evident, as is the high-density edge connector that interfaces with the host system for PCIe-based data transfer. Several test points and manufacturing markings are present, facilitating quality control and diagnostics. The lack of components here is typical for double-sided SSDs, where one side is reserved for labeling, thermal pads, or mechanical stability. The overall design demonstrates DJI’s commitment to signal integrity, thermal efficiency, and robust construction, all essential for reliable performance in professional drone environments.
Regulatory Insights & FCC Filing
The assignment of FCC ID SS3-PL512M21611 to the DJI CINESSD is a testament to its compliance with US electromagnetic interference (EMI) and electromagnetic compatibility (EMC) standards. While the grant date is officially listed as ‘None’, the device’s registration with the FCC signifies that it has passed the rigorous testing required for legal sale and operation within the United States.
FCC filings for devices like the CINESSD typically include a comprehensive suite of documentation:
– Test Reports: Validate the device’s emissions against FCC Part 15 regulations for unintentional radiators.
– Internal and External Photographs: Offer transparency into the device’s construction for regulatory review.
– User Manuals: Outline safe operation, installation, and handling.
– Schematics and Block Diagrams: Provide insight into circuit design and layout for compliance verification.
For storage devices, the primary regulatory concern is the control of unintended RF emissions, ensuring that high-speed digital circuits do not interfere with other wireless systems—especially critical in drone applications where GPS, telemetry, and video transmission must remain unaffected. The CINESSD’s FCC certification under SS3-PL512M21611 reflects its adherence to these standards and its suitability for use in professional environments.
Potential Use Cases & Target Audience
While the FCC filing does not specify a target audience, the technical characteristics and design of the DJI CINESSD (Model: CINESSD, FCC ID: SS3-PL512M21611) make its primary users clear:
- Professional Drone Cinematographers
- Rely on the CINESSD for uninterrupted 4K/6K RAW video capture during high-production-value shoots.
-
Value the high-speed, high-reliability storage for extended aerial filming sessions and rapid post-flight data offload.
-
Enterprise Surveying and Mapping Teams
- Use the CINESSD to store large volumes of high-resolution imagery and sensor data collected during mapping and inspection missions.
-
Benefit from the device’s robust build and EMI protection, ensuring data integrity in complex electromagnetic environments.
-
Technical Integrators and System Builders
- Integrate the CINESSD into custom drone platforms or ground stations requiring fast, field-replaceable storage.
- Rely on its standard M.2 interface and modularity for flexibility in demanding workflows.
Conclusion
The DJI by SZ DJI TECHNOLOGY CINESSD, certified under FCC ID SS3-PL512M21611, stands as a robust, high-performance storage solution engineered for the rigors of professional aerial imaging. Its meticulous internal design—highlighted by advanced NAND, a dedicated SSD controller, and comprehensive EMI protection—ensures reliable operation in the most demanding environments. FCC certification not only legitimizes its sale and use in the US but also affirms its compliance with critical RF emission standards. As drones continue to push the boundaries of cinematic and industrial applications, the CINESSD provides the data backbone necessary for capturing and preserving every moment with uncompromising speed and integrity.
